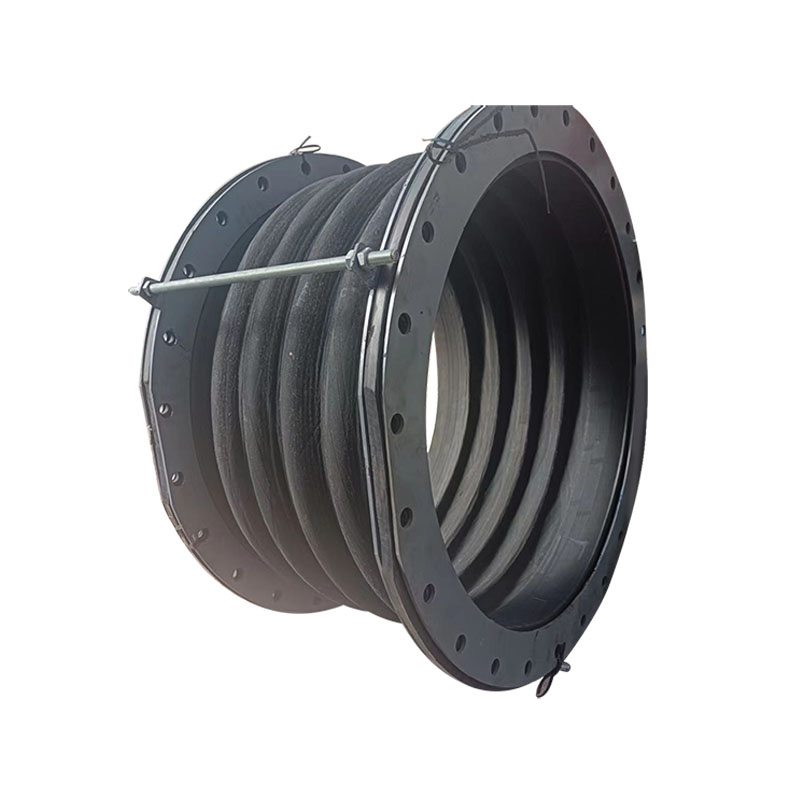

Hebei Fushuo Round Rubber Soft Connection is a flexible connection product for engineering pipeline systems, professionally manufactured by China Manufacturer Hebei Fushuo. The product is primarily used to absorb pipe displacement, reduce vibration and noise, and alleviate stress problems caused by thermal expansion and contraction.
As a stable supplier of Round Rubber Soft Joints in China, the Fushuo factory has relatively complete control processes in raw material selection, molding processes, and factory testing, which can meet the needs of different engineering projects for quality consistency.
This Round Rubber Soft Connection uses high-quality resin material as the core raw material, combined with appropriate functional additives, and is formed through mature processes such as extrusion or injection molding.
This production method can guarantee the stability of the product structure at the source, avoiding inconsistent performance due to material fluctuations, and is more conducive to large-scale engineering use.
This product has several advantages in practical use:
Lighter weight: The overall structure is relatively lightweight, reducing the burden of transportation and on-site installation.
Convenient installation and maintenance: It does not rely on complex construction equipment, which helps improve construction efficiency.
No noticeable odor: Meets the basic requirements of current engineering projects for environmentally friendly construction.
Good corrosion resistance and weather resistance: Suitable for underground humid environments and certain acid and alkali media conditions.
| Item | Parameter Range / Description |
| Product Name | Round Rubber Soft Connection |
| Brand | Hebei Fushuo |
| Connection Type | Round Rubber Flexible Connection |
| Main Materials | High-Quality Resin + Rubber Composite Material |
| Molding Process | Extrusion Molding / Injection Molding |
| Applicable Medium | Water, Sewage, General Industrial Medium |
| Working Environment | Underground / Indoor / Conventional Industrial Environment |
| Parameter Category | Parameter Name | Common Specifications/Options |
| Basic Dimension Parameters | Nominal Diameter (DN) | DN25, DN50, DN80, DN100, DN150, DN200 |
| Flange Standard | GB/T (National Standard), ANSI (American Standard), EN (European Standard) | |
| Structure Type | Single-wave Structure, Multi-wave Structure | |
| Length Specification | Regular Length, Compact Short Length | |
| Working Condition Performance Parameters | Working Pressure | 0.6MPa, 1.0MPa, 1.6MPa |
| Applicable Medium | Ordinary Water/Air, Weak Acid/Weak Alkali, High-Temperature Water (≤120℃) | |
| Rubber Material | Natural Rubber (NR), Nitrile Rubber (NBR), Ethylene Propylene Diene Monomer (EPDM) | |
| Displacement Compensation Capacity | Axial Displacement: ±5mm~±20mm; Lateral Displacement: ±3mm~±15mm; Angular Displacement: ±3°~±10° | |
| Applicable Temperature Range | -20℃~80℃ (Natural/Nitrile Rubber); -40℃~120℃ (EPDM) |
In terms of structural design, the Round Rubber Soft Connection combines the advantages of traditional socket-type rubber soft connections and plastic drainage pipes, and adopts multiple process optimizations in the treatment of metal components, including surface strengthening and standardized heat treatment, making the overall performance more stable.
Its main features include:
Good strength and ring stiffness, able to withstand common underground loads.
Effectively absorbs pipe vibration and reduces operating noise.
Relieves pipe stress during temperature changes, reducing the risk of interface damage.
Has a certain adaptability to slight vibrations and displacements, contributing to the long-term stable operation of the system.
A: Yes, the product has good corrosion resistance and weather resistance and can adapt to underground humid environments.
A: Compared with traditional connection methods, the installation process is relatively simplified and does not require large and complex equipment.
A: As a round rubber soft joint supplier in China, Hebei Fushuo can provide stable bulk supply support.
A: Dimensions and related parameters can be confirmed based on specific project requirements.
