What Makes a Pipe Compensator Indispensable in Modern Piping Systems?

2025-10-17

In industrial and building piping systems, Pipe Compensators (also known as expansion joints or flexible compensators) serve as crucial components that absorb movements, relieve stress, and maintain system integrity under varying operational conditions.

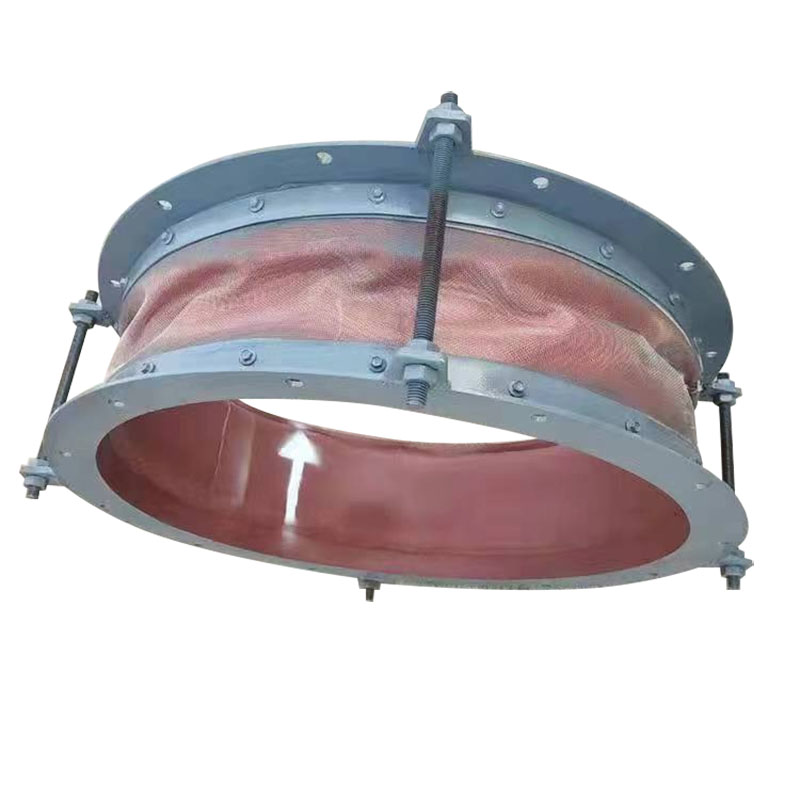

Non-metallic Circular Compensator

At the outset, here is a typical specification summary for a high-grade metal bellows pipe compensator:

Parameter Typical Value / Range
Nominal Diameter (DN) DN 50 – DN 2400 mm
Nominal Pressure Up to 2.5 MPa (or higher for special designs)
Maximum Operating Temperature Up to ~450 °C (or more for exotic alloys)
Movement Capacity Axial, Lateral, Angular displacement (varies per design)
Material of Bellows Stainless steel (or high-temperature alloys)
End Connections Welded ends, flanged, threaded, or grooved as needed
Design Life / Cycles Designed for high fatigue cycle count; expected decades when properly selected

This specification table emphasizes essential design parameters, illustrating the professional rigor behind product selection. The content that follows explores why compensators matter, how they function and are selected, and the emerging trends shaping their future.

What Is a Pipe Compensator and What Functions Does It Serve?

What Exactly Is a Pipe Compensator?

A pipe compensator is a flexible device installed within a piping system to absorb mechanical deformations due to thermal expansion, contraction, vibration, pressure fluctuations, misalignments, settlement, or seismic activity. In practice, many compensators are built with one or more metal bellows (corrugated flexible elements) plus connectors and support hardware.

What Are the Main Functional Roles?

  • Absorb Thermal Expansion/Contraction: Prevents pipe stress and deformation when temperature changes cause expansion or contraction.

  • Vibration & Shock Isolation: Acts like a damping element, reducing the transmission of vibration or pressure surges from equipment (pumps, compressors, etc.) into the piping system.

  • Alignment Compensation: Corrects small offsets or misalignments that arise during installation or due to structure movement.

  • Stress Mitigation: Reduces stresses on supports, flanges, valves, and equipment by localizing the movement absorption.

  • Accommodate Settling or Seismic Displacement: Helps maintain integrity under foundation shifting or seismic action by allowing controlled displacement.

Thus, the compensator becomes a structural “buffer” that protects the rigid parts of the piping system from damage and failure by localizing flexibility where needed.

Why Are Pipe Compensators Crucial? Benefits and Justification

Why Do Piping Systems Require Compensators?

Pipelines invariably face mechanical stresses from temperature cycles, pressure fluctuations, and dynamic loads. Without proper accommodation, these stresses may cause fatigue cracking, leaks, or catastrophic failure. The compensator is the engineering solution that relieves these stresses and improves system robustness.

Key Advantages of Using Pipe Compensators

  1. Stress Reduction and Longevity
    By absorbing expansion and contraction, compensators prevent the accumulation of thermal stress in pipes, valves, and joints, thereby extending service life.

  2. Compactness and Space Efficiency
    Compared to long expansion loops or bends, compensators provide displacement absorption in a compact package.

  3. Lower Structural Loads
    The device reduces load transfer to anchors or building structures, diminishing the need for over-designed supports.

  4. Simplified System Layout
    With flexible compensation localized, piping design becomes more straightforward, reducing complexity.

  5. Noise and Vibration Control
    Mitigation of vibration and pulsation helps reduce noise levels and protects sensitive equipment.

  6. Adaptability to Varying Conditions
    A well-selected compensator can deal with multi-directional displacements (axial, lateral, angular).

  7. Cost Savings Over Lifecycle
    Although initial cost is higher than rigid connections, savings from reduced maintenance, downtime and rework often justify the expense.

Potential Limitations to Consider

  • Compensation range is finite — oversizing movement beyond design is harmful.

  • Pressure thrust must be managed, especially for axial types.

  • The cost of high-cycle, high-temperature designs can increase substantially.

  • Proper installation, alignment, and support are critical to performance; misapplication leads to early failure.

Given these tradeoffs, the use of a compensator should be justified by a thorough thermal stress and mechanical analysis. In many applications—especially in power plants, petrochemical, HVAC, and industrial installations—the benefits markedly outweigh the incremental cost.

How to Select, Design, Install, and Maintain a Pipe Compensator

How to Choose the Right Type (What Design Considerations)

Movement Requirements & Type Matching

  • Axial Compensators
    Handle axial elongation/compression only. Ideal for straight runs with well-defined fixed points.

  • Lateral Compensators
    Accommodate sideways displacement; tie rods often used to control movement forces.

  • Angular Compensators
    Designed to flex at an angle about a pivot point.

  • Universal (Multi-Belows) Compensators
    Combine axial + lateral + angular flexibility in one unit — useful in complex piping geometries.

  • Pressure-Balanced (Thrust Balanced)
    Internal geometry neutralizes pressure thrust, reducing load on anchoring structures.

Material & Corrosion Compatibility

Bellows and connecting parts should be selected from stainless steel, nickel alloys, or other materials compatible with fluid, temperature, and environmental conditions.
In corrosive or high-temperature systems, exotic alloys (Inconel, Hastelloy) or lining may be used.

Movement Magnitude & Cycle Life

Estimate total expected travel (axial, lateral, angular) over temperature cycles. Select a design that offers margin and high cycle fatigue capability.

Pressure and Temperature Ratings

Ensure the compensator’s rated pressure and temperature match or exceed system conditions, with safety margins.

End Connections and Installation Space

Choose weld, flange, grooved, or threaded ends to match your system. Confirm there is sufficient installation clearance (including for future movement). Allow for inspection and maintenance access.

Anchors, Guides, and Restraints

Proper external anchoring and guiding prevent unwanted bending or buckling of the compensator. Restraints may be needed to limit displacement or control load paths.

How It Works (Operational Mechanics)

  • The bellows element flexes (folds or unfolds) in response to changes in pipe length or alignment shifts.

  • In axial movements, the folds compress or extend, absorbing the displacement.

  • In lateral or angular movement, the bellows bend or torque accordingly (depending on design).

  • Tie rods or external guides may control force direction and prevent overextension.

  • Internal guide tubes, sleeves, or reinforcement may be used to reduce flow turbulence and limit bellows exposure to fluid forces.

How to Install Correctly

  • Alignment: Ensure the compensator is aligned with piping to avoid side loading.

  • Anchors and Guides: Install anchors, guides, and restraints as per design drawings.

  • Movement Test: Before commissioning, move the compensator through its full stroke to verify clearance.

  • Thermal Preload: Sometimes a cold pre-compression is applied to center the compensator in its range.

  • Support: The compensator must be supported as part of the piping design to avoid sagging.

  • Welding/Flanging: Use proper welding and flanging techniques, avoiding distortion.

How to Maintain and Inspect

  • Regular Visual Inspection: Look for cracks, deformation, or signs of fatigue.

  • Leak Checks: Watch for leaks around welds or gaskets.

  • Cycle Monitoring: Log number of cycles and compare with design life.

  • Vibration Monitoring: Ensure that vibration levels remain within acceptable thresholds.

  • Replacement Planning: Based on wear, plan replacement before failure.

  • Cleaning: Keep bellows and surroundings free from debris that could rub or abrade.

Future Trends, Market Outlook, and Innovation in Pipe Compensators

What Innovations Are Emerging?

  • Smart / Sensor-Enabled Compensators
    Embedding strain gauges, displacement sensors, or health monitoring sensors to predict fatigue and alert maintenance.

  • Advanced Alloys & Coatings
    Use of high-performance materials (nickel alloys, ceramic coatings) for extreme environments (supercritical, aggressive fluids).

  • Compact Multi-Axis Designs
    New geometries allow higher flexibility in smaller footprints for tight installations.

  • Additive Manufacturing Applications
    Use of 3D-printed transitional pieces or complex geometrical elements to optimize performance.

  • Integration with Digital Twin & Predictive Analytics
    Monitoring compensator behavior in live operation and integrating into plant digital twins for predictive maintenance.

Why These Trends Matter

As markets push toward higher efficiencies, higher pressures/temperatures, and tighter margins, compensators must evolve. Systems such as ultra-supercritical power plants, advanced chemical reactors, and new energy applications (e.g., hydrogen systems) impose more demanding requirements. The compensator of the future must not only flex reliably but also provide diagnostic feedback and integrate seamlessly into smart systems.

How the Market Is Responding

Manufacturers and R&D groups are investing heavily in lifecycle analytics, sensors, new materials, and modularization of compensator systems. Demand is growing in renewables, LNG, hydrogen transmission, district energy systems, and advanced manufacturing. The focus is shifting from pure mechanical robustness toward intelligent, integrated systems.

Common Questions About Pipe Compensators — FAQ

Q: How to determine whether to use axial, lateral, or angular compensator?
A: Calculate the expected displacements in each direction based on pipe thermal expansion, alignment tolerances, supports displacement, or settlement. If the majority is axial, an axial compensator may suffice. If lateral or angular misalignment is present, consider lateral, angular, or a universal compensator accordingly. Advanced analysis (finite element, stress analysis) often guides this decision.

Q: What happens if a compensator operates beyond its designed movement range?
A: Operating beyond design limits can lead to metal fatigue, buckling, overstress in bellows or connectors, and eventual failure (cracking or leakage). It compromises the cycle life severely and may lead to sudden, catastrophic breakdown. Therefore, design safety margins and restraints are critical.

Concluding Thoughts and Next Steps

Pipe compensators are fundamental to resilient, efficient piping systems, offering stress relief, vibration damping, and alignment correction. The right combination of materials, movement capacities, and system integration is critical for long-term performance. With the rise of smart systems and demand for higher operational efficiency, the compensator is evolving—not just as a passive mechanical component, but as an intelligent, monitored asset in modern piping networks.

As the industry moves forward, Fushuo remains committed to delivering advanced, high-quality compensator solutions tailored for demanding applications. Explore collaboration and solution customization—contact us to discover the ideal compensator for your system needs.
