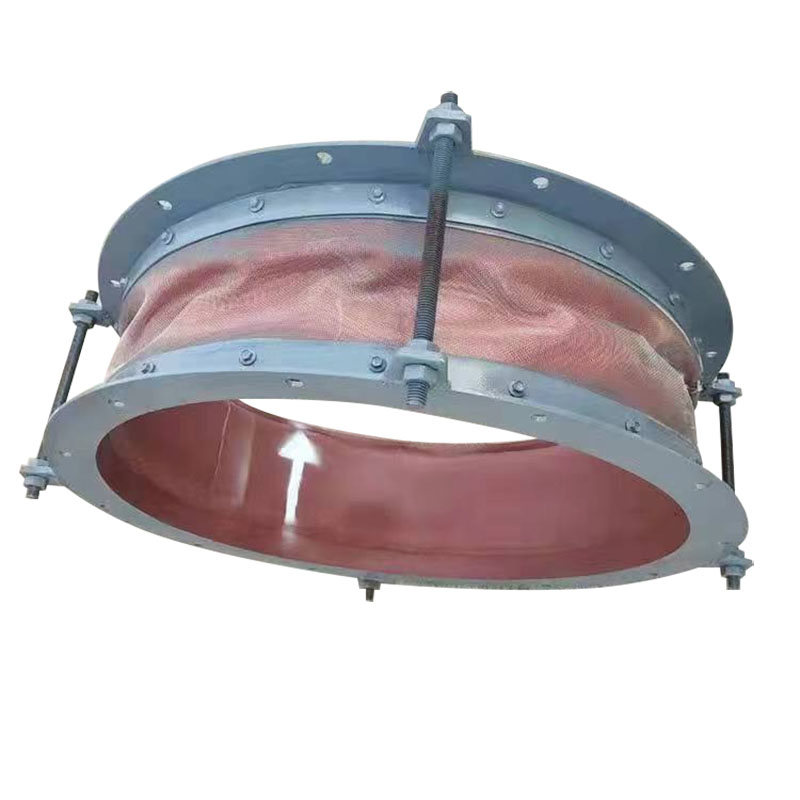

Non-metallic Circular Compensator

The Non-metallic Circular Compensator is a non-metallic circular expansion joint professionally manufactured by China Manufacturer Fushuo. It is primarily used in industrial piping systems to absorb displacement, reduce vibration, and minimize stress.

The product uses composite non-metallic materials, formed through a special process, and possesses excellent axial and angular compensation capabilities, effectively addressing pipe displacement problems caused by temperature changes, equipment vibration, or foundation settlement.

Detailed Introduction

Product Functions and Core Advantages

The core function of the Non-metallic Circular Compensator is to provide reliable flexible compensation for piping systems, mainly reflected in the following aspects:

Possesses excellent axial and angular displacement compensation capabilities

Effectively absorbs stress generated by thermal expansion and contraction, equipment vibration, and foundation settlement

Reduces the risk of pipe deformation, flange leakage, and structural damage

Improves the operational stability and safety of the entire piping system

In practical engineering, this type of compensator can significantly extend the service life of pipes and connecting components.

Materials and Performance under Operating Conditions

Fushuo non-metallic circular compensators adopt a multi-layer composite non-metallic material structure, optimized for complex operating conditions:

Stable high-temperature resistance, suitable for hot air and flue gas systems

Possesses good corrosion resistance, adaptable to various media

Suitable for complex conveying environments such as dust-laden gases and flue gases

Flexible structure, not prone to fatigue cracking during long-term use

Compared with metal compensators, it has more advantages in corrosive environments and large displacement conditions.

Structural Features and Engineering Advantages

The product design emphasizes "simplified structure and efficient use":

• No elastic thrust characteristics, reducing the impact on pipe supports and equipment load

• Helps simplify the design of the pipe support system

• Reduces overall engineering costs and installation difficulty

• Lightweight body, making installation and subsequent maintenance more convenient

At the same time, the flexible material itself has certain shock absorption and noise reduction effects, which can effectively absorb equipment vibration and improve the workshop operating environment.

Connection Methods and Model Selection

To meet diverse engineering requirements, Non-metallic Circular Compensators are available in various structural forms and connection methods:

Connection Methods:

Flange connection: Easy installation and removal

Reliable sealing performance and secure connection

Common Structural Models:

Double-layer type: Enhanced sealing and pressure resistance

Angular type: Suitable for multi-angle displacement conditions

Square-to-round type: Combines structural adaptability and stability

Customized production is available based on pipe size, media, and operating conditions.

Typical Application Areas

This product is widely used in the following systems and scenarios:

Hot air ducts

Flues and exhaust pipes

Dusty gas conveying systems

Inlet and outlet pipes of industrial equipment

Main service industries include:

Power industry

Metallurgical industry

Chemical industry

Building materials industry

Product Technical Parameters
