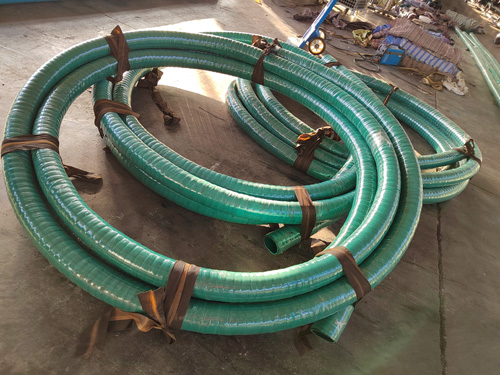

Large diameter rubber tubes are indispensable components in a wide range of industrial applications. These tubes, typically ranging from 50 mm to over 1000 mm in diameter, are specifically designed to handle high-pressure fluids, bulk materials, abrasive particles, and air flow in demanding environments. They are widely used in sectors such as construction, mining, oil and gas, chemical processing, water treatment, marine engineering, and power generation.
Superior Flexibility – Maintains shape and strength even under intense bending and vibration.
High Durability – Designed to withstand extreme wear, tear, and abrasion for prolonged service life.
Corrosion & Chemical Resistance – Suitable for handling aggressive chemicals, oils, and fuels.
Efficient Material Transfer – Smooth inner linings ensure minimal friction loss and reduced blockages.
Wide Operational Range – Can handle high-pressure water, slurries, gases, and dry bulk solids.
As industries move toward automation and large-scale operations, the performance of components like large diameter rubber tubes directly impacts production efficiency and safety standards. Choosing the right product specification is, therefore, critical for ensuring reliability and operational continuity.
Selecting the ideal large diameter rubber tube requires a thorough understanding of your operational requirements, environmental conditions, and technical specifications. The wrong choice can lead to leaks, wear failures, system downtime, and increased maintenance costs.
Internal Diameter (ID) & Outer Diameter (OD)
The tube’s diameter must match the intended flow volume and system compatibility. Larger diameters are ideal for high-capacity material transfer.
Wall Thickness
Thicker walls provide better resistance to high pressures and abrasions but reduce flexibility.
Working Pressure & Burst Pressure
Always select a tube with a pressure rating higher than your operating requirements to ensure safety.
Temperature Range
Extreme heat or cold can compromise the integrity of rubber compounds. Choose materials designed for your environmental conditions.
Material Composition
Different rubber compounds — such as natural rubber (NR), nitrile rubber (NBR), ethylene propylene diene monomer (EPDM), and neoprene — offer distinct chemical, heat, and weather resistance.
Reinforcement Layer
For high-pressure or abrasive environments, opt for tubes reinforced with textile cords, steel wire, or synthetic fibers.
| Parameter | Specification | Benefit |
|---|---|---|
| Inner Diameter | 50 mm – 1200 mm | Suitable for various industrial capacities |
| Wall Thickness | 8 mm – 50 mm | Enhanced durability under high stress |
| Working Pressure | Up to 4.0 MPa | Handles demanding pressure applications |
| Burst Pressure | Up to 12 MPa | Ensures maximum safety margins |
| Temperature Range | -40°C to +120°C | Performs reliably in extreme climates |
| Material Options | NR, NBR, EPDM, Neoprene | Customizable chemical and weather resistance |
| Reinforcement | Multi-ply textile or steel wire | Increased strength and structural stability |
| Application Fields | Mining, Oil & Gas, Marine, HVAC, Power Plants | Widely applicable across industries |
By aligning product specifications with operational demands, companies can optimize efficiency, minimize wear-related downtime, and maximize service life.
Large diameter rubber tubes play a critical role in maintaining seamless industrial operations. Without reliable tubing, industries risk production delays, environmental hazards, and costly repairs.
Mining & Quarrying
Used for slurry transfer, dewatering, and dust suppression systems, capable of handling abrasive sand, gravel, and chemical-laden water.
Oil & Gas Industry
Essential for transporting crude oil, petroleum products, and natural gas under high-pressure conditions.
Marine Engineering
Designed for dredging operations, seawater transfer, and underwater pipe systems resistant to salt corrosion.
Power Plants & HVAC Systems
Facilitate large-scale cooling, steam circulation, and exhaust gas discharge for optimal thermal efficiency.
Chemical & Pharmaceutical Sectors
Safe for handling aggressive solvents, acids, and liquid chemicals without degrading or contaminating materials.
Cost Reduction
High-quality rubber tubes reduce replacement frequency and maintenance downtime.
Improved Safety
Stronger reinforcements lower the risk of burst failures and hazardous leaks.
Eco-Friendly Options
Modern manufacturing techniques now emphasize recyclable and low-emission rubber compounds, meeting sustainability standards.
Fushuo’s advanced production processes ensure that every large diameter rubber tube undergoes rigorous testing to meet international safety and performance standards. This makes them an ideal choice for companies seeking reliability and cost-effectiveness.
The maximum working pressure depends on the tube’s material, wall thickness, and reinforcement. Fushuo’s large diameter rubber tubes can handle up to 4.0 MPa safely, with burst pressures reaching 12 MPa, ensuring secure and continuous operation under extreme industrial demands.
The lifespan varies based on usage and environment. Under optimal installation and maintenance conditions, Fushuo’s tubes can last 5 to 10 years even in harsh environments involving abrasive materials or chemical exposure.
In today’s competitive industrial landscape, efficiency, reliability, and safety are non-negotiable. Choosing the right large diameter rubber tube ensures smooth operations, minimizes costly downtime, and enhances overall productivity.
Fushuo, as a leading manufacturer of high-performance rubber products, specializes in providing customized large diameter rubber tubes tailored to meet the toughest operational challenges. Our products are trusted by clients worldwide across mining, energy, marine, and chemical industries.
For more details or to request a custom solution, contact us today and discover how Fushuo can support your industrial needs with precision-engineered rubber tubing solutions.
